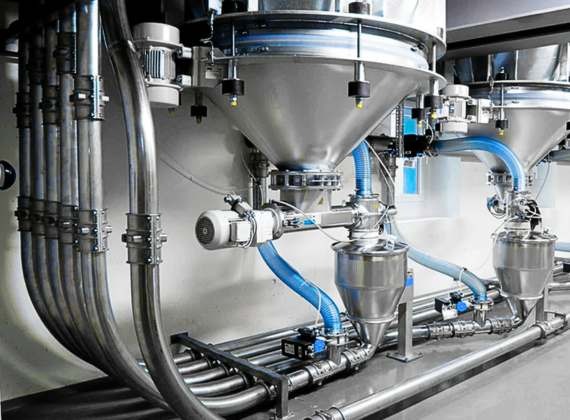

Pneumatic Conveying Systems for Petrochemical, Polymer & Carbon Black Plants
Turnkey dilute & dense phase systems engineered for PP, PE, PVC, plastic granules and carbon black. Zero spillage. Fully enclosed. Concept to commissioning — from our Pune facility to your plant, anywhere in India.
500+
Successful Installations
10+
Countries
70%
Repeat Orders
25+
Years of Experience
Pellet or powder spillage causing product loss and safety hazards
Dust leakage creating air quality and compliance problems
Bucket elevators causing frequent downtime and maintenance costs
Abrasive materials wearing out your conveying equipment rapidly
Manual material transfer creating contamination and inefficiency
Long-distance conveying with no reliable enclosed system
Envirocon's pneumatic conveying systems solve all of the above — with zero spillage, fully enclosed pipelines and minimal maintenance.
We have designed and commissioned 250+ systems across petrochemical, polymer, carbon black and plastic processing plants in India. From concept to handover, we own the full project.
Lean Phase Pneumatic Conveying
Low solid-to-air ratio — high velocity air transfer
Pressure below 2 bar — uses Roots blower / PD blower
Ideal for non-abrasive materials: PP, PE, plastic granules, sugar
Economical for conveying up to 300 metres
Continuous operation — high throughput, simple design
Components: Rotary air lock valve, blower, product separator
Lower capital cost — suitable for most standard applications
Dilute Phase vs Dense Phase — Which System Do You Need?
Our Core Systems
Dense Phase Pneumatic Conveying
High solid-to-air ratio — low velocity, high pressure operation
Pressure above 2 bar — uses air compressor as prime mover
Essential for abrasive materials: carbon black, PVC resin, soda ash
Conveying distances over 1000 metres possible
Batch conveying — minimal pipe wear and particle degradation
Components: Pressure vessel / transfer pot, compressor, instrument valves, control panel
Preferred for fragile, abrasive or cohesive materials
Pneumatic Conveying Systems for Every Industrial Sector

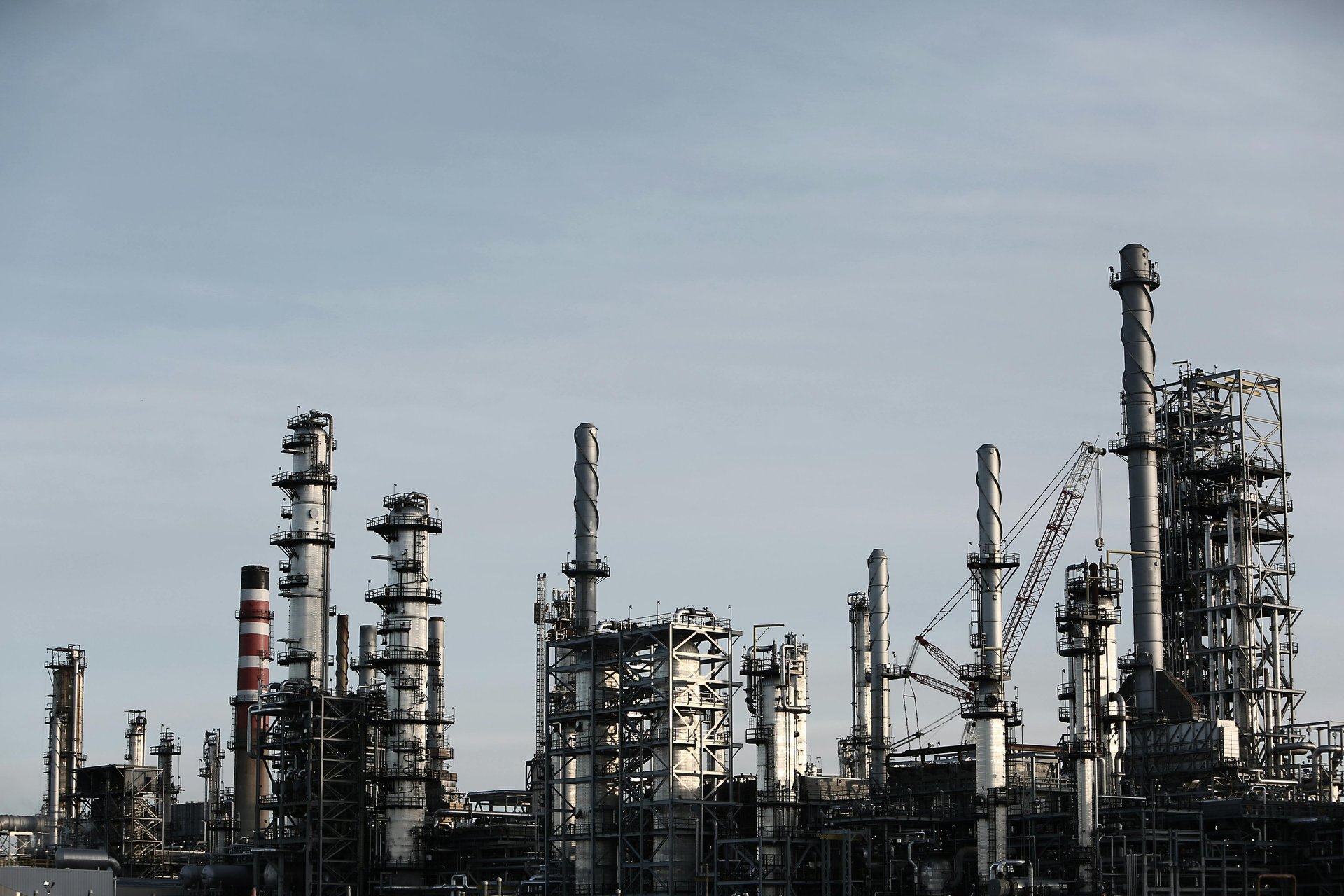

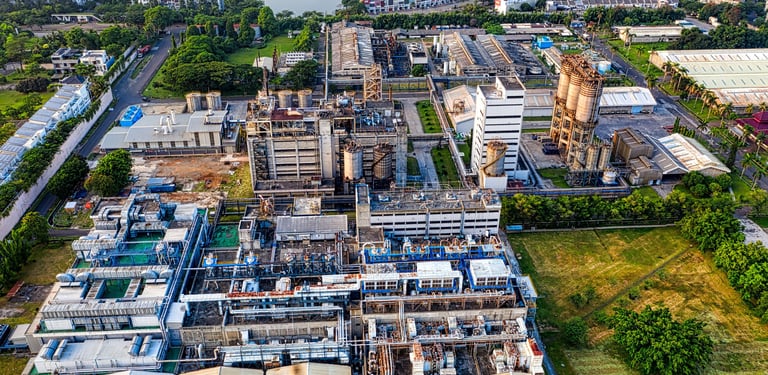

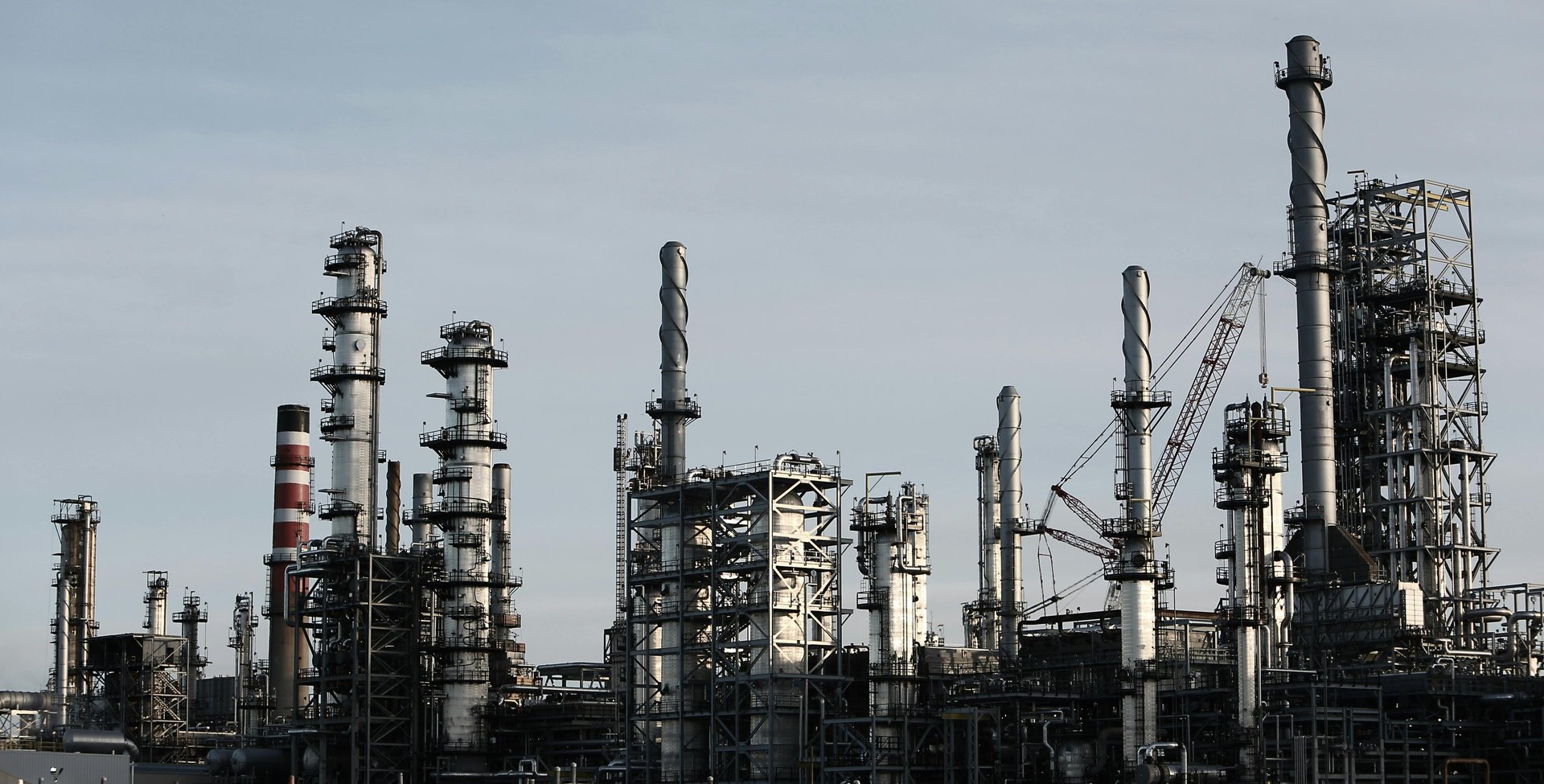

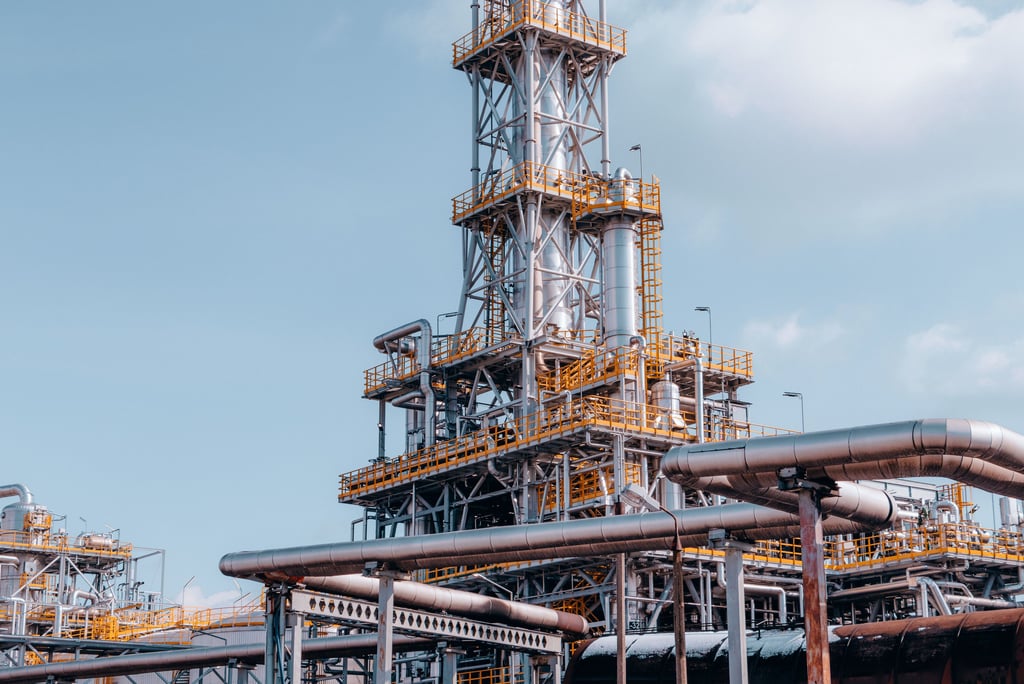

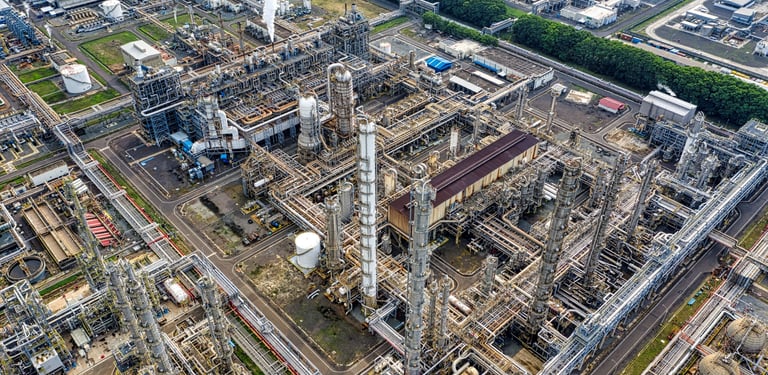

Petrochemical & Polymer
Industries We Serve
PP, PE, PVC, CPVC, HDPE, LLDPE
Carbon Black
N220, N330, N550, N660, Specialty
Plastic & Polymer Processing
N220, N330, N550, N660, Specialty
Chemical & Mineral
Soda ash, Silica, CaCO3, Talc
Paint & Pigment
TiO2, Pigment powder, Filler
Fertilizer & Agro
Urea, DAP, NPK, Ammonium Sulphate
Food & Grain
Wheat flour, Sugar, Milk powder, Spices
Pharmaceutical
API, Excipients, Tablet granules

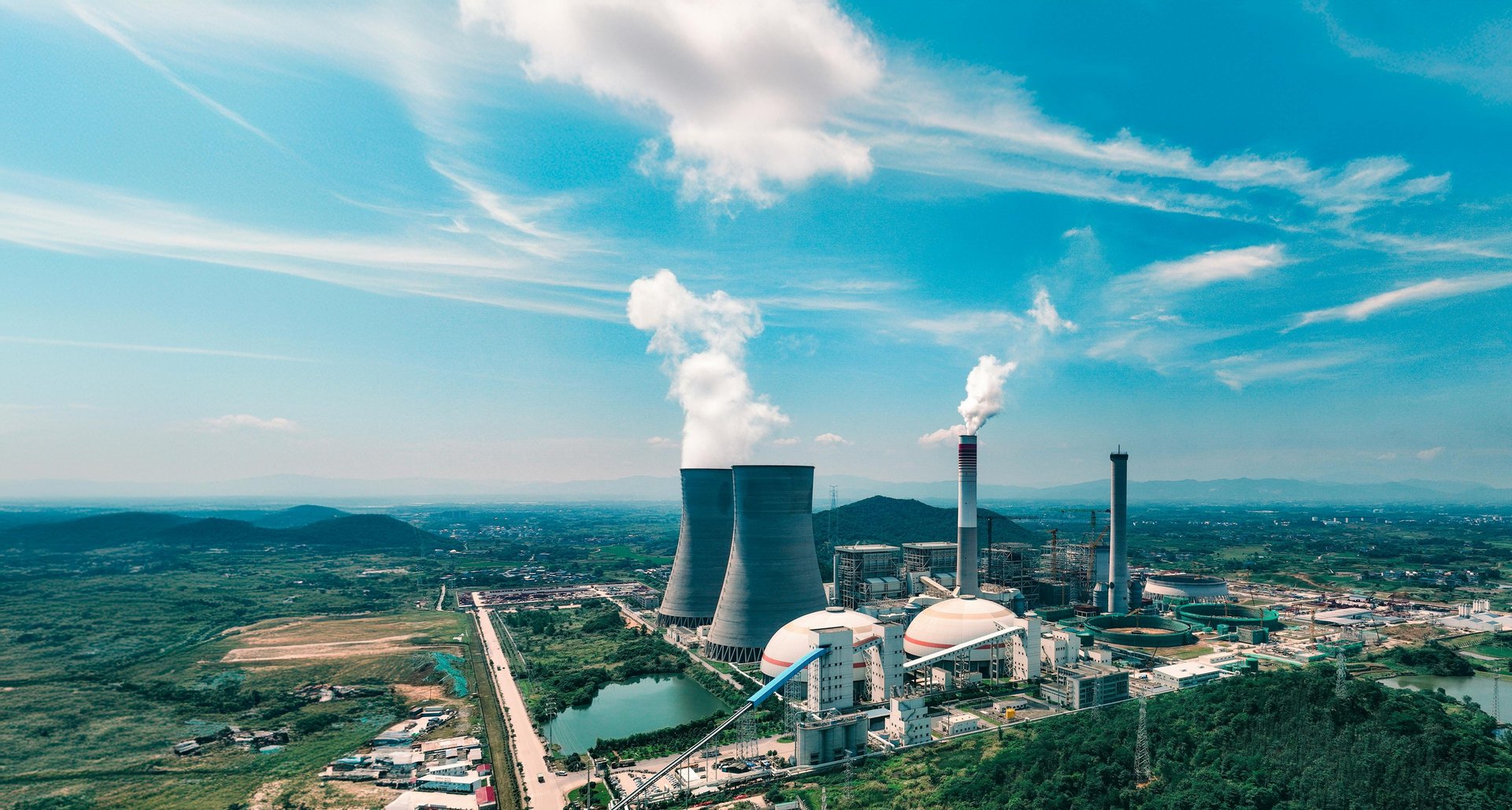

Cement & Power
Fly ash, Clinker, Coal, Lime
Pneumatic Conveying Systems for Every Industrial Sector
System Features
Custom-designed for your material, capacity, distance, and plant layout
Energy-efficient operation with optimized blower/compressor selection
Flexible pipeline routing (vertical, horizontal, diagonal)
Low-maintenance design with fewer moving parts and longer service life
Engineered for Performance & Efficiency
Reliable, Clean & Automated Operation
Complete Turnkey Solutions with Global Compliance
Fully enclosed pipeline for zero dust emission and product spillage
Fully automated PLC/SCADA-controlled operation
Material testing available before final system design
Consistent performance with minimal manual intervention
End-to-end execution: Design, Manufacturing, Supply, Installation & Commissioning
Single-point responsibility and after-sales support
Designed to meet CE/European standards with ATEX-compliant options for hazardous areas
Everything Designed & Manufactured In-House
Rotary Air Lock Valve
For material feeding and air sealing
Raj Deep Envirocon designs and manufactures every major component of the pneumatic conveying system in our 17,000 sq ft Pune facility — giving you complete integration, quality control and accountability.
Complete System Components
_________________________________________
Positive Displacement Blower
For dilute phase conveying (below 2 bar)
_________________________________________
Air Compressor
For dense phase conveying (below 2 bar)
_________________________________________
Pressure Vessel / Transfer Pot
For material feeding and air sealing
_________________________________________
Bag Filter / Dust Collector
Product separation and dust control
_________________________________________
Cyclone Separator
Primary product separator
_________________________________________
Screw Conveyor
Short-distance mechanical feeding
_________________________________________
Storage Silo
Intermediate and end-point storage
_________________________________________
Jumbo Bag Unloading System
FIBC / big bag unloading into system
_________________________________________
Bag Dump Station
Manual bag-to-system entry point
_________________________________________
Divertor Valve
Multi-destination routing
_________________________________________
Lump Breaker / Hammer Mill
Pre-conditioning of caked material
_________________________________________
PLC Control Panel
Automated sequencing and safety control
_________________________________________
Conveying Pipeline (MS/SS/PE)
Custom routed per plant layout
_________________________________________
Technical Specifications
Why Rajdeep ENVIROCON?
Proven expertise in bulk material handling systems
Customized pneumatic conveying solutions
In-house design and manufacturing
Complete turnkey project execution
Reliable performance in demanding industrial environments
Low maintenance and long service life
Strong technical and after-sales support
